Measuring device by MQ-510
€1,019.90
Tax Included
Optimize the lighting of your corals with precision Apogee
The By-meter Apogee Mq-510 is the ultimate measuring instrument for seawater aquariums. Especially calibrated for underwater measurements, it allows to accurately mapping the light intensity (by) received by your corals. Thanks to its high loyalty waterproof sensor, adjust your ramps Led To maximize photosynthesis and avoid bleaching.
- 🎯 PRO Accuracy: Immersion correction factor already integrated into the firmware.
- 📊 Intelligent memory: Records up to 99 manual and average daily measurements.
- 🧪 Extended spectrum: Precise measurement between 389 and 692 nm (blue silicon photodiode).
Secure paymentCB or bank transfert
We send worldwide! Register to see costs
Question? Contact us, we answer quickly!
🔬 Why measure it in your reef aquarium?
The light is the engine of coral growth. Too weak, your corals are expanding; Too strong, they undergo oxidative stress. TheApogee Mq-510 Eliminates approximations. Unlike standard models, the MQ-510 automatically applies a correction factor for the refractive index of water, giving you a real and immediate reading.
🛠️ Advanced technology and robustness

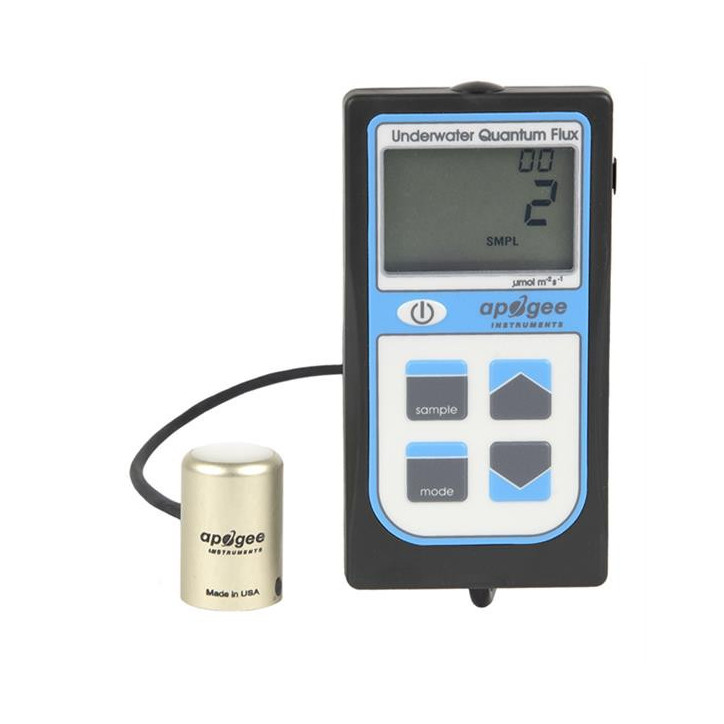

This unit consists of a portable (non-sealed) reading box and a high quality sensor connected by a 2 meter cable:
- ✅ High performance sensor: Robust anodized aluminum body with acrylic diffuser for extreme durability in a marine environment.
- ✅ Registration modes: Choose between manual sampling mode or automatic mode (measured every 30 seconds with average 30 minutes).
- ✅ Data Analysis: Export your computer surveys for complete analysis (requires the AC-100 cable sold separately).
📊 Technical characteristics
| Parameter | Value / detail |
|---|---|
| Measuring range | 0 to 4000 μmol M-2 S-1 |
| Spectral range | 389 to 692 nm ± 5 nm |
| Calibration uncertainty | ± 5% |
| Protection index | IP68 (immemerible sensor up to 30m) |
| Response time | Less than 1 ms |
| Materials | Anodized and acrylic aluminum |
⚠️ Important reminder: Although the sensor and cable are totally waterproof (IP68), the Portable player should not be immersed or exposed to water splashes.
💡 The Reef'Art Council: For optimal placement of your corals, perform measurements at different locations of the decor. A SPS coral usually will usually ask for 250-400, while a LPS will flourish between 75 and 150.
Frequently asked questions Apogee Mq-510
Why is the MQ-510 ideal for salt water aquariums?
The MQ-510 ofApogee is specifically designed for underwater measurements. Its firmware already incorporates the correction factor of the immersion effect, which guarantees specific statements without manual calculation, which is essential to optimize the growth of corals.
Is the device fully waterproof?
Only the quantum sensor and its 2 meter cable are completely sealed (IP68 index) and can be immersed up to 30 meters. The portable control box (LCD player) is not waterproof and must stay dry.
What is the measuring range and the accuracy of the MQ-510?
This apparatus measures photosynthetically active radiation (by) on a range of 0 to 4000 μmol M-2 S-1, covering a spectral range of 389 to 692 nm. It offers excellent repeatability (less than 0.05%) and calibration uncertainty of only ± 5%.
Can the measurement data be recorded over time?
Yes, the counter has a sampling mode (99 manual measurements) and an automatic recording mode that calculates an average every 30 minutes. It also provides an integrated daily total (DLI) mol M-2 J-1.
How to transfer data from the MQ-510 to a computer?
The data transfer requires the free apogeams software and the specific AC-100 communication cable. Note that a standard USB cable will not work with this unit.
